Z275 Galvanized Sheet

Product Description

The galvanized steel coil Z275 is a double-sided galvanized carbon steel sheet. This is produced by a metal coating process that passes cold rolled coils through a bath filled with molten zinc. This continuous hot-dip plating or also known as electro-galvanizing is the main process that these carbon steel sheets must go through to produce coils and galvanized sheets. The process consists of applying zinc by electrolytic treatment. After the sheet is subjected to this treatment, a layer of zinc is adhered to the base metal through the iron and zinc bonding layer.
Galvanizing is a well-known and effective method to add a protective layer to prevent the exposed steel from being corroded by natural elements. Zinc not only acts as a barrier between the environment and the steel, but it also decomposes first to protect the underlying steel and extend its service life.


Scope of Application

Galvanizing products are widely used in industry, agriculture, animal husbandry and fishery, energy, transportation, chemical industry, light industry, home appliances, construction, communications, national defense and other fields.



Product Parameters

Product NameZ275 Galvanized Sheet
Thickness0.12mm-6.00mm
Width600mm-1500mm
Length1m-12m, Support Customization
StandardAISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Zinc LayerHot Galvanizing: 60-275g/m²
Pre-galvanized: 80-275g/m²



Chemical Composition

StandardGradeCSiMnPSTi
Forcold FormingChinese StandardDX51D+Z0.120.500.600.1000.0450.30
DX52D+Z0.120.500.600.1000.0450.30
DX53D+Z0.120.500.600.1000.0450.30
DX54D+Z0.120.500.600.1000.0450.30
DX56D+Z0.120.500.600.1000.0450.30
DX57D+Z0.120.500.600.1000.0450.30
Forcold FormingJapanese StandardSGCC0.150.500.800.0500.0300.025
SGCD1
SGCD2
0.12
0.10
0.50
0.50
0.60
0.45
0.040
0.030
0.030
0.030
0.025
0.025
SGCD30.080.500.450.0300.0300.025
SGCD40.060.500.450.0300.0300.025
For StructureJapanese StandardSGC3400.250.501.700.2000.0350.025
SGC400
SGC440
0.25
0.25
0.50
0.50
1.70
2.00
0.200
0.200
0.035
0.035
0.150
0.150
SGC4900.300.502.000.2000.0350.025
SGC5100.300.502.500.2000.0350.025
For StructureAISI StandardS220GD+Z0.200.600.700.1000.0450.025
S250GD+Z0.200.600.700.1000.0450.025
S280GD+Z0.200.600.700.1000.0450.025
S320GD+Z0.200.600.700.1000.0450.025
S350GD+Z0.200.600.700.1000.0450.150
S550GD+Z0.200.600.700.1000.0450.150

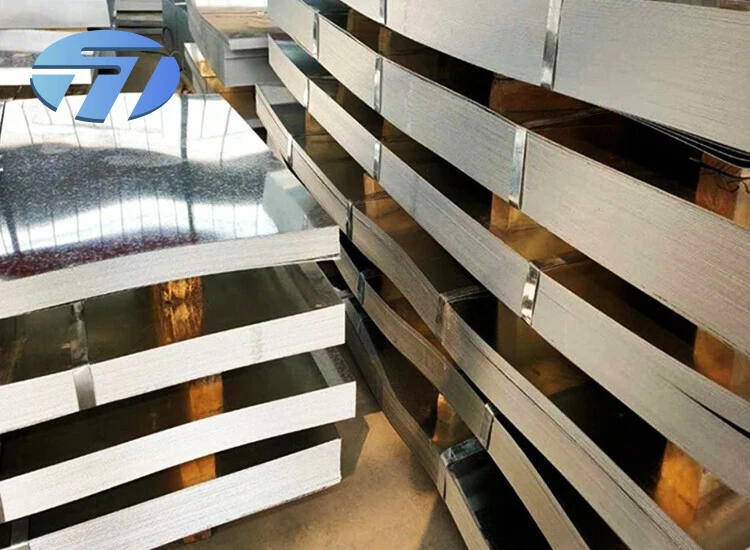

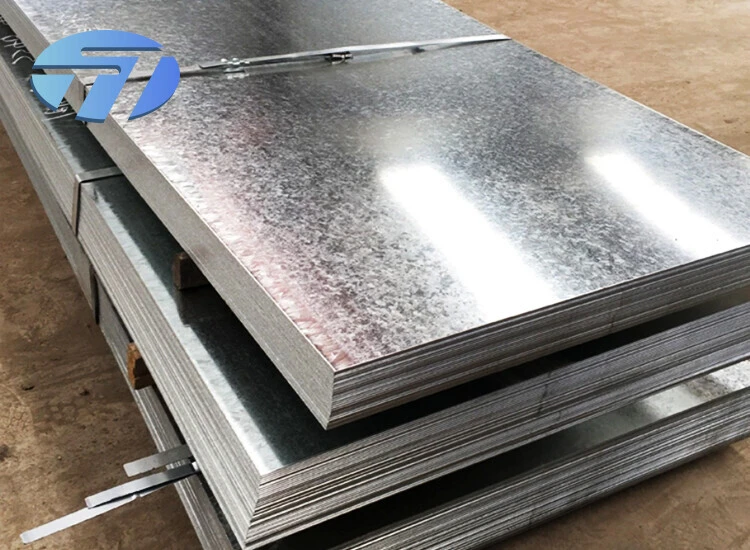

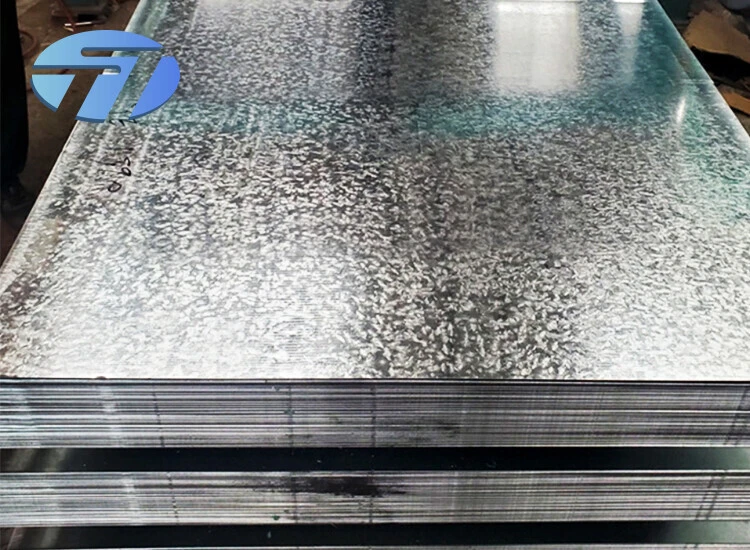

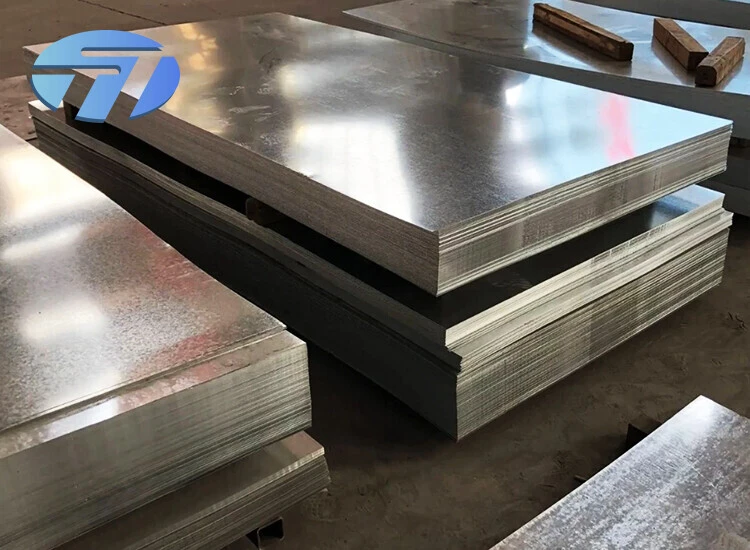

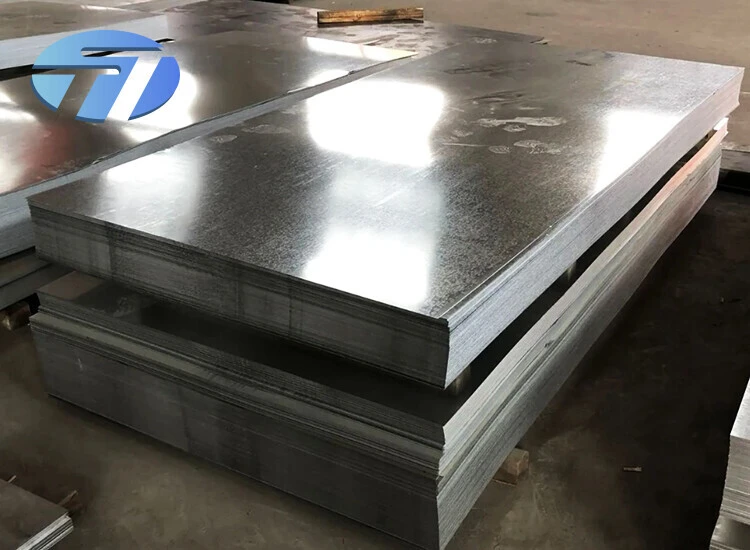

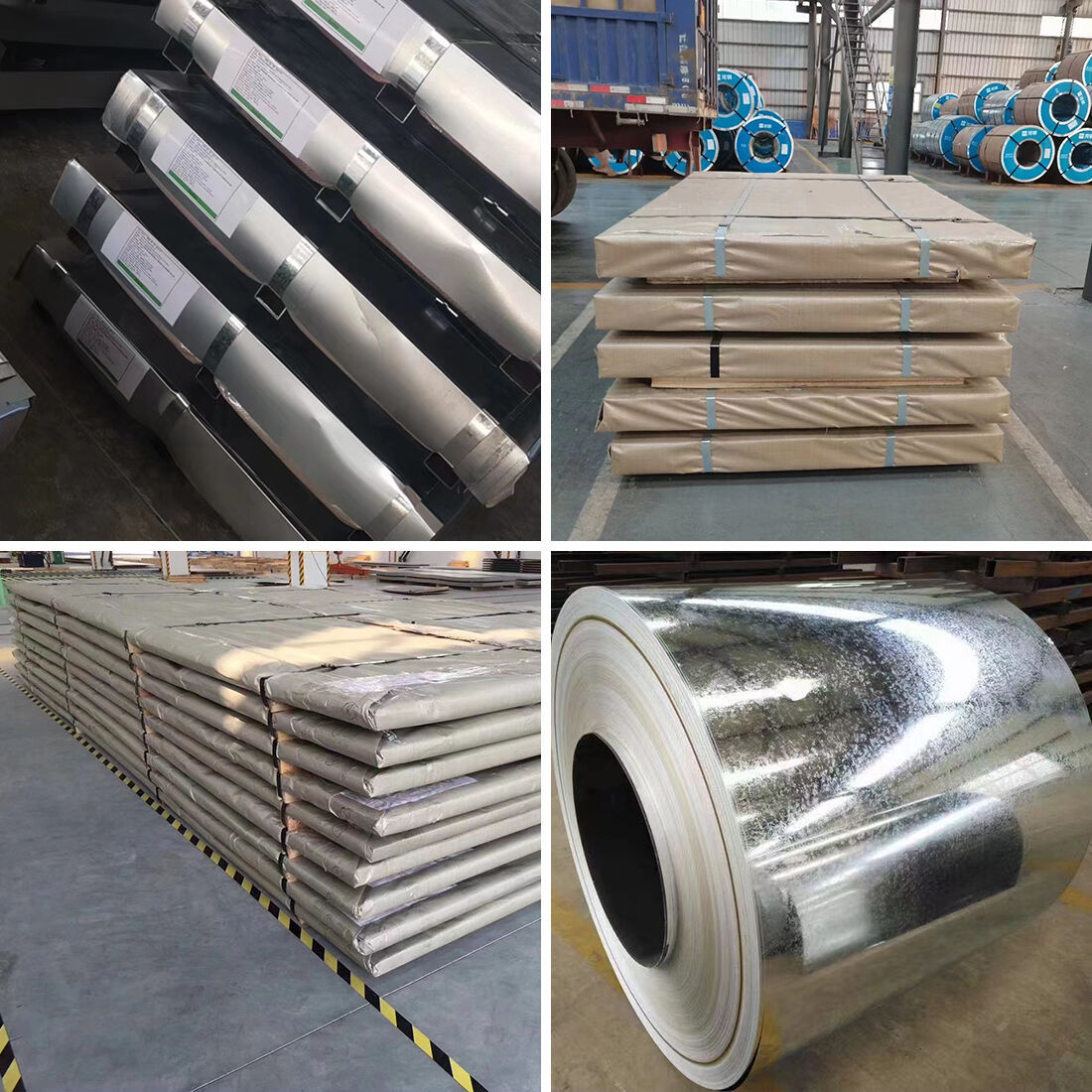

Product Show
